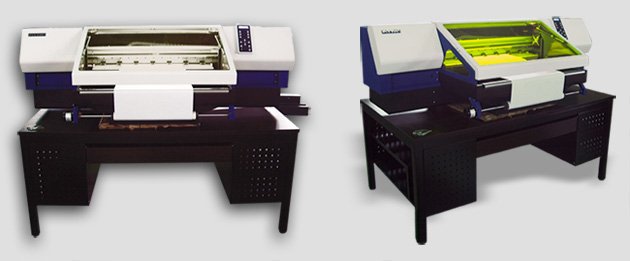

Super Precision UV LED Printer E6080UV
Super High Precison
- UV LED curing system: To meet Green and flexible for most medias.
- Variable drops : High images is achieved by utilizing a resolution up to 2880dpi and variable dot size
- The new head provide possibility to print legible 3pl characters.
Super More Flexibility
- Print on rigid board : 30 inch width
- Print on roll media : meet demands of hybrid printing on roll media
- Print on 3D : An option 3D unit is available that enhances productivity & efficiency on 3D surface, Max. 5 inch thickness accepted.
Super Higher Image
- More vivid images with white ink
- More clear ink adds more value to your prints.
Super Eco-friendly
- No VOCs are produced by UV curing print
- Uses Rodin LED system which is an added feature for efficient work with less power consumption.
Technical Specifications
| IItem | Specifications | |
| E6080UV | ||
| Printhead | Drop-on-demand Piezo Inkjt Technology 1 or (2) Pc | |
| Maximum Print width | 770 mm (30 in) | |
| Maximum Media Width | 770 mm | |
| Precision | 360 x 720 dpi ; 360 x 1080 dpi; | |
| 360 x 1440 dpi ; 360 x 2160 dpi; | ||
| 360 x 2880 dpi ; 540 x 720 dpi; | ||
| 720 x 360 dpi ; 720 x 720 dpi; | ||
| 720 x 1080 dpi ; 720 x 720 dpi; | ||
| 720 x 2880 dpi | ||
| Print Speed | High Speed | ±11.2 - 20 m²/hr |
| Standard | ±7.6 - 15 m²/hr | |
| High Quality | ±6.2 - 12 m²/hr | |
| Ink | Type | UV LED Ink : 4/6 color |
| Color | Cyan, Magenta, Yellow, Black, (Vanish, White) | |
| Capacity | Main ink section 700cc/color | |
| Ink supply System | Low ink detector, Auto or manual ink supply system | |
| Media | Types | Flat material : Glass, Ceramic Tiles etc |
| ROll Media, sheet media, Cylinder : (2"<Diameter<5")(optional) | ||
| Stereoscopic : <762mm (W) x 508mm (L) x 115mm (H) | ||
| AUTO STABLE : <760mm (W) x 508mm (L) x 70mm (H) | ||
| Feeding | Flatform (30 in. x 20 in.) | |
| Auto Media Feeding & Take-up System | Media Feeding (optional) | |
| Media take-up (optional) | ||
| Printhead Cleaning System | Automatic Cleaning System | |
| Automatic Dry-preventing system | ||
| Pre-heater & Dry System | 2 UV LED lights system (395nm) | |
| Clamp | (optional) | |
| Print Interface | USB 2.0 | |
| Flatform Height | Flatform to head adjustable within 70mm | |
| RIP Software | Ultraprint, Photoprint 10 | |
| Input Power | 100 ~ 240V, 50/60 Hz | |
| Machine Dimension | L1190mm x W1865mm x H575mm | |
| Above specifications are subject to change without prior notice. | ||
