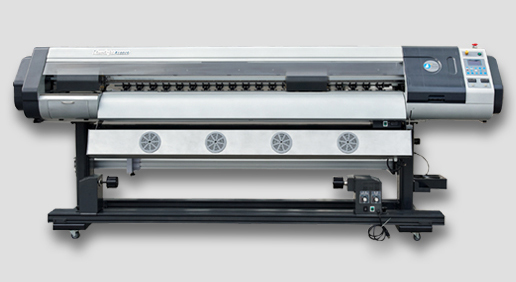

Eco Solvent Printer A1802S
High resolution
- 2 well known EPSON Dx5 Eco-solvent fifth generation print heads can reach true 1440 dpi
- Silent linear guide on new designed horizontal beam ensures precise printing
- Optional sublimation oven for vivid color printing
- Japanese speed, Chinese price
New innovation
- GZ control console with proprietary intellectual property rights
- Rigid CNC milled aluminum block print head mounting base
- Special print head mounting base to protect head
- New improved capping block perfectly protect the print head
Multifunction
- One head 4 colors for high-resolution and hi-speed with hi-resolution
- The Best USB interface new control boards to protect print heads
- Mid. and Front Heating System with PID temperature control unit
- New designed taking-up / feeding system to maintain long feeding
Easy control
- Auto wiping system for print heads nozzle face cleaning
- Auto capping system perfectly protect the print heads
- Photo print 6.1 +GZ control console software
Technical Specifications
| Item | Specifications | |
| Tech | Printhead | 2 EPSON Dx5 Eco-Solvent Fifth Generation Heads |
| Technology | Drop-on-Demand Peizo Inkjet Technology | |
| Output Resolution | X:360dpi Y:720dpi / 1080dpi / 1440 dpi / 2180 dpi | |
| Media Clearance | 1.5mm~3.5mm Adjustable Head Height | |
| Ink | Outdoor durability | 1 year of outdoor life |
| Eco Solvent Ink | C, M, Y, K | |
| Ink Supply | Bulk Ink with Germany filter | |
| Drying | Drying system | Pre. Middle and Front heaters control by PID |
| Temp. Range | Adjustable up to 80° C , Recommended temp. 40°~50° C | |
| Media Type | Print Width | Max : 1800 mm |
| Media Type | PP, PVC, Coated photo paper, Adhesive Vinyl, Banner, Backlit, Film... | |
| Transportation | Auto Feeder plus Auto taking up system | |
| Printing Speed | 360 x 1080 dpi 3 pass 300 sq.Ft/hr | |
| 360 x 1440 dpi 4 pass 240 sq.Ft/hr | ||
| 360 x 2160 dpi 6 pass 200 sq.Ft/hr | ||
| 360 x 2880 dpi 4 pass 150 sq.Ft/hr | ||
| Other | Interface | USB high speed interface for large volume data transferring |
| Software | Photoprint 6.1 + GZ control console | |
| Environment | Temperature:23°~29°C, Humidity 50~80% | |
| Power | 50Hz/AC220V(±10%) Single Phase | |
| Dimension | L x W x H (mm) : 2870 x 955 x 1145 (mm) | |
| Above specifications are subject to change without prior notice. | ||
